Electromagnetic Flow Meters are used for Measurement of FLOW RATES using Faraday's Law of electromagnetic Induction.

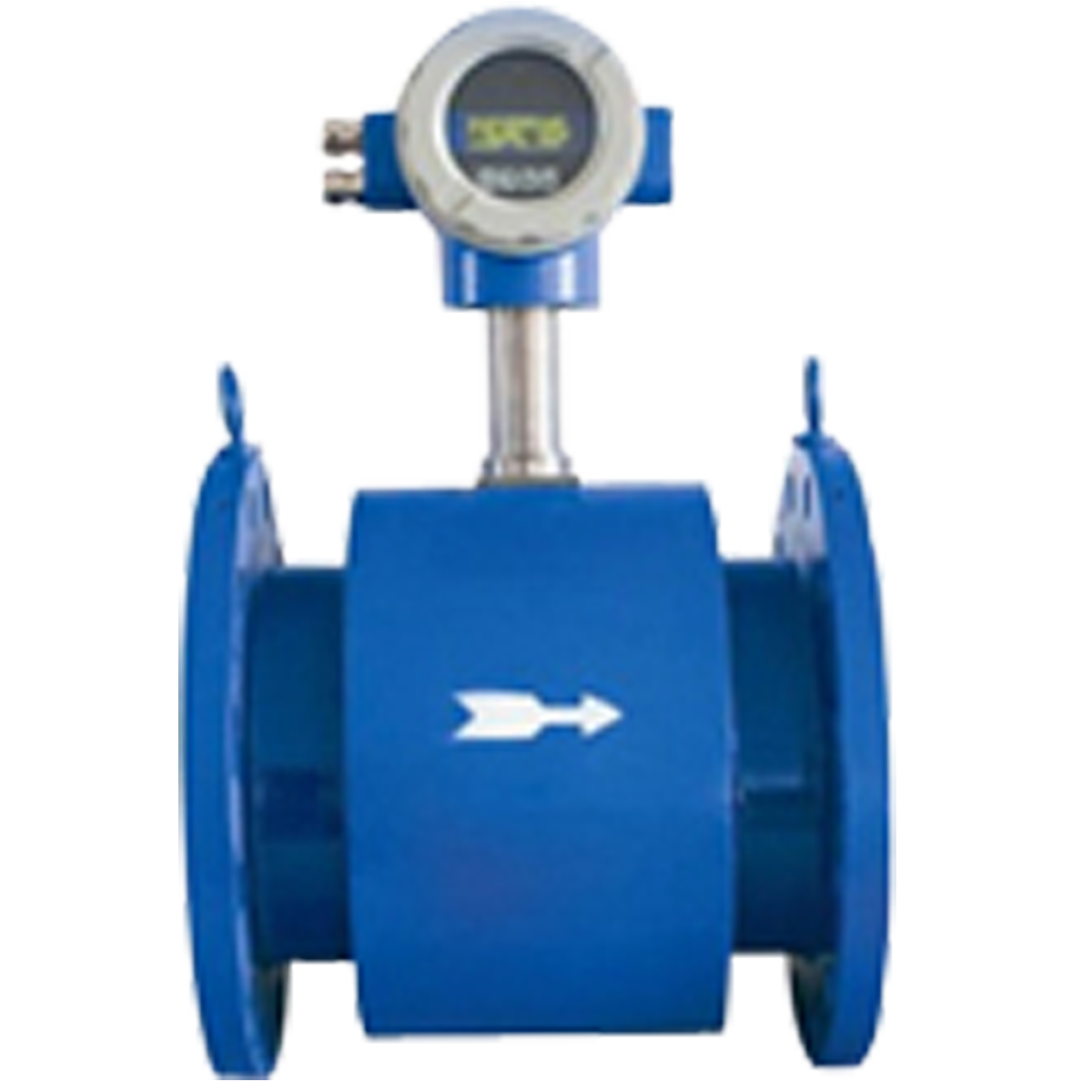

Electromagnetic Flow Meter


The electromagnetic flow meter accurately measures the flow rate of any conducting liquid or slurry that is flowing in closed pipes. It is obstruction less and hence offers no pressure drop in the process. Absence of moving parts ensures that there is no need for maintenance. The performance of the instrument is not affected by the properties of the material such as corrosiveness, viscosity, density, acidity and alkalinity. It can measure the flow of liquids, pastes and slurries in water, wastewater. Suitable for chemical, fertilizer, paper, dairy, sugar, food and beverage industries.

Standard Compliance:

Design & Calibration Conforms to ISO 9104 & ISO DIS 6817

Technical Specification:

Line Size : 15 NB to 600 NB Flow Units : M3/H, M3/M,M3/S, L/H,L/M,L/S, USG/H,USG/M,USG/S
Connection : Flanged to ASA/BS/DIN/JIS Output : 4-20 mA & pulse
Power Supply : 220 VAC/24VDC Relay Output : Low & High
Accuracy : ± 0.5% of FSD Display : LCD 4 Digit
Minimum Conductivity : 5 µs/cm Communication Port : RS485(Modbus)
Lining : PTFE,EPDM,Rubber Lowest Velocity : 0.033 m/s
Process temperature : Up to 80°C for Rubber Up to 150°C for PTFE Highest Velocity : 15 m/s
Electrodes : SS 316,Hastalloy C, Titanium, Monel, Pt-Rh   :
Protection : IP67; Optional: IP 68   :
