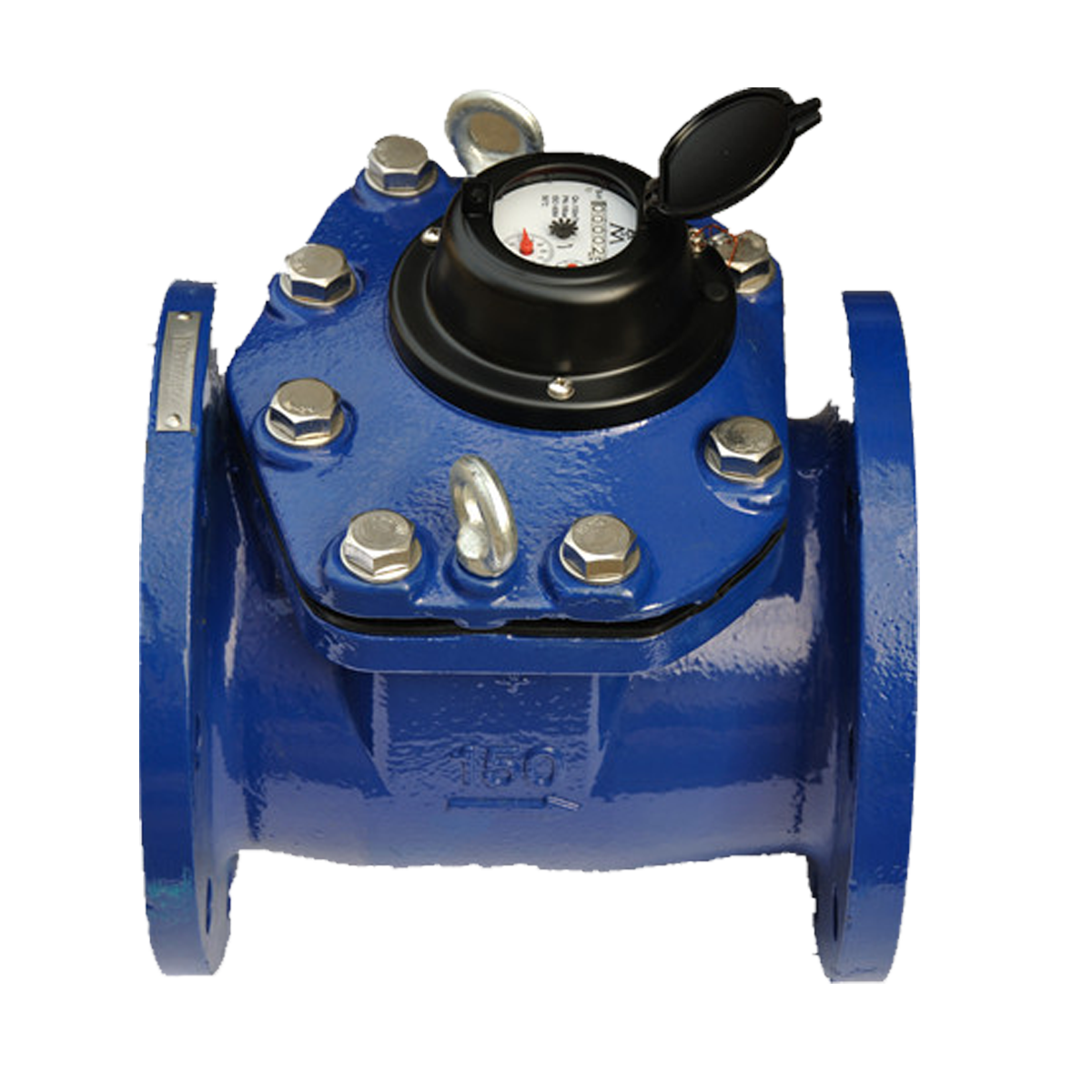

This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.
Measuring the volume of cold (hot) water passing through the pipeline
Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;
Dry-dial, Magnetic drive sensitive action, small pressure loss;
Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
Selected high quality materials for steady & reliable characteristic;
Technical data conform to international standard ISO 4064.
Water temperature: 0.1℃～50℃ ( 0.1℃～90℃ for hot water meter)
Water pressure: ≤1Mpa (1.6MPa for special requirement)
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
| Type | Size (mm) | Class | qs Overload Flow |
qp Permanent Flow |
qt Transitional Flow |
qmin Min. Flow | Min. Reading | Max. Reading |
| m3/h | m3 | |||||||
| RHE-50 | 50 | 30 | 15 | 0.0002 | 999,999 | |||
| B | 3.0 | 0.45 | ||||||
| RHE-65 | 65 | 50 | 25 | 0.0002 | 999,999 | |||
| B | 5 | 0.75 | ||||||
| RHE-80 | 80 | 80 | 40 | 0.002 | 999,999 | |||
| B | 8.0 | 1.2 | ||||||
| RHE-100 | 100 | 120 | 60 | 0.002 | 999,999 | |||
| B | 12 | 1.8 | ||||||
| RHE-150 | 150 | 300 | 150 | 0.002 | 999,999 | |||
| B | 30 | 4.5 | ||||||
| RHE-200 | 200 | 500 | 250 | 0.002 | 999,999 | |||
| B | 50 | 7.5 | ||||||
| RHE-250 | 250 | 800 | 400 | 0.002 | 999,999 | |||
| B | 80 | 12 | ||||||
| RHE-300 | 300 | 1200 | 600 | 0.02 | 9,999,999 | |||
| B | 120 | 18 | ||||||
| RHE-350 | 350 | 1600 | 800 | 0.02 | 999,999,999 | |||
| B | 160 | 24 | ||||||
| RHE-400 | 400 | 2000 | 1000 | 0.02 | 999,999,999 | |||
| B | 200 | 30 | ||||||
| RHE-500 | 500 | 3000 | 1500 | 0.02 | 999,999,999 | |||
| B | 300 | 45 | ||||||
| RHE-600 | 600 | 6000 | 3000 | 0.02 | 999,999,999 | |||
| B | 600 | 90 | ||||||
| Type | Size | L Length |
H Height |
Connecting flange | ||||
| φD1 Outside diameter | φD2 Bolt circle diameter | Connecting Bolts(n-M) | Working pressure (MPa) | |||||
| mm | ||||||||
| RHE-50 | 50 | 200 | 261 | 165 | 125 | 4-M16 | 1.6 | |
| RHE-65 | 65 | 200 | 271 | 185 | 145 | 8-M16 | 1.6 | |
| RHE-80 | 80 | 225 | 279 | 200 | 160 | 8-M16 | 1.6 | |
| RHE-100 | 100 | 250 | 289 | 220 | 180 | 8-M16 | 1.6 | |
| RHE-150 | 150 | 300 | 319 | 285 | 240 | 8-M20) | 1.6 | |
| RHE-200 | 200 | 350 | 346 | 340 | 295 | 12-M20 | 1.6 | |
| RHE-250 | 250 | 450 | 434 | 405 | 355 | 12-M24 | 1.6 | |
| 2.5 | ||||||||
| RHE-300 | 300 | 500 | 459 | 460 | 410 | 12-M24 | 1.6 | |
| RHE-350 | 350 | 500 | 590 | |||||
| 520 | 470 | 16-M24 | 1.6 | |||||
| RHE-400 | 400 | 600 | 660 | |||||
| 580 | 525 | 16-M27 | 1.6 | |||||
| RHE-500 | 500 | 800 | 760 | |||||
| 715 | 650 | 20-M30 | 1.6 | |||||
| RHE-600 | 600 | 500 | 880 | |||||
| 840 | 770 | 20-M33 | 1.6 | |||||
