Technical data conform to International Standard ISO4064

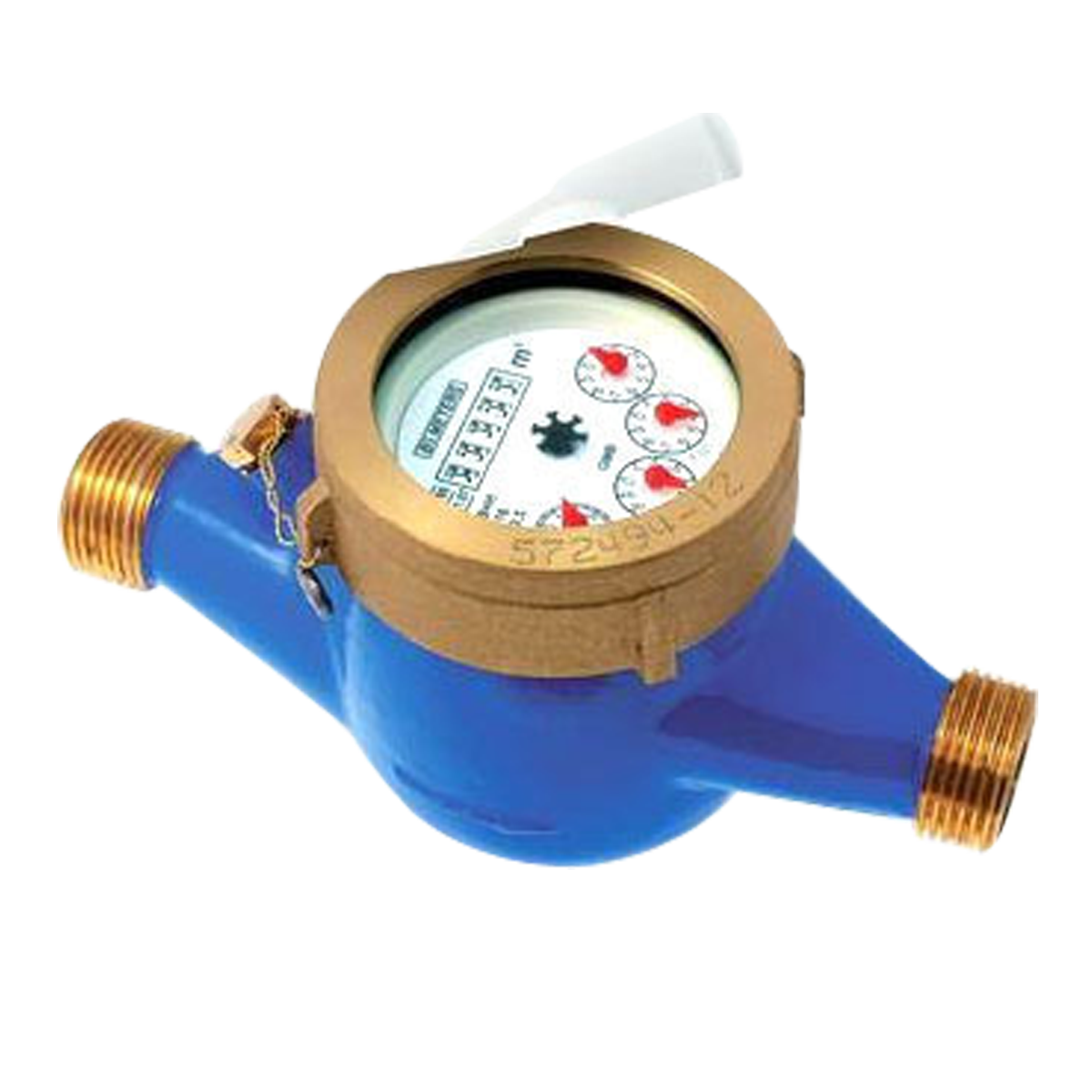

Measuring the volume of cold potable water passing through the pipeline
Dry type, magnetic drive, antimagnetic function, pointer-roller indicator, easy and long term clear reading, frost resistance, long work life etc
Available non-return valve, inlet strainer and pulse output on request.
Class C water meter is available for 15mm (1/2 inch) and 20mm (3/4 inch).
Water temperature: ≤50℃ for cold water meter
≤90℃ for hot water meter
Water pressure: ≤1MPa or 1.6MPa optional
(10bar or 16bar optional)
In the lower zone from Q min inclusive up to but excluding Qt is ±5% _ In the upper zone from Qt
inclusive up to and including Qs is: cold water meter ±2%, hot water meter ±3%.
Type | Size (mm) | Class | Qn Max. Flow |
Qp Nominal Flow |
Qn Transitional Flow |
Qmin Min. Flow |
Min. Reading | Max. Reading |
M3/h | L/h | M3 | ||||||
LXSG-15E | 15 | 3 | 1.5 | 0.0001 | 99999 | |||
B | 120 | 30 | ||||||
LXSG-20E | 20 | 5 | 2.5 | 0.0001 | 99999 | |||
B | 200 | 50 | ||||||
LXSG-25E | 25 | 7 | 3.5 | 0.0001 | 99999 | |||
B | 280 | 70 | ||||||
LXSG-32E | 32 | 12 | 6.0 | 0.0001 | 99999 | |||
B | 480 | 120 | ||||||
LXSG-40E | 40 | 20 | 10 | 0.001 | 99999 | |||
B | 800 | 200 | ||||||
LXSG-50E | 50 | 30 | 15 | 0.001 | 99999 | |||
B | 1200 | 300 |
Each water meter has one set couplings optional: 2pcs tube, 2pcs nut and 2pcs gasket.
Type | Size | Length | Width | Height | Connecting Thread D | Weight (kg) |
mm | ||||||
LXSG-15E | 15 | 165/190 | 99 | 104 | G 3/4B | 1.4/1.6 |
LXSG-20E | 20 | 190/195 | 99 | 106 | G 1B | 1.7/1.8 |
LXSG-25E | 25 | 260/225 | 103 | 114 | G1 1/4B | 2.6/2.4 |
LXSG-32E | 32 | 260/230 | 104 | 117 | G1 1/2B | 2.8/2.7 |
LXSG-40E | 40 | 300/245 | 124 | 147 | G 2B | 5.1/4.5 |
LXSG-50E | 50 | 300/280 | 125 | 172 | G2 1/2B | 8.5/8.2 |
Flange connect GB4216.4-84 D=165 D1= 125 | 11.5/11 |
